HyMAC

Quantify soft magnetic materials with precision and versatility.

HyMAC system with grey fixtures, strip tester, and toroidal field coil tester

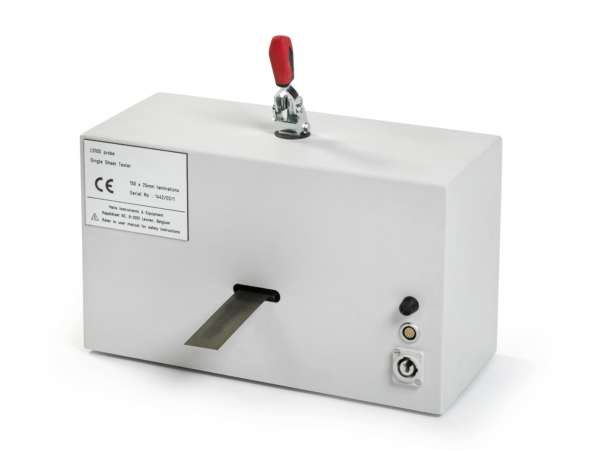

HyMAC soft magnetic materials tester shown in a clean lab setting, featuring a compact instrument with connected fixtures used to measure magnetic properties across a wide frequency range.

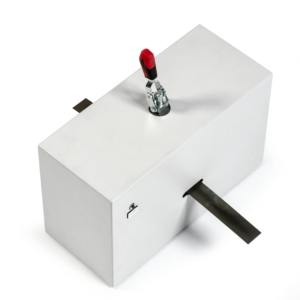

Close up of the HyMac testing setup with sample material mounted in a fixture, illustrating how the system evaluates low field magnetic properties of materials like electrical steel, amorphous wires, and nanocrystalline alloys.

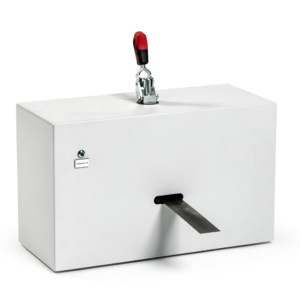

HyMac system with multiple interchangeable testing fixtures displayed, highlighting its versatility for full spectrum magnetic material characterization in both research and production environments.

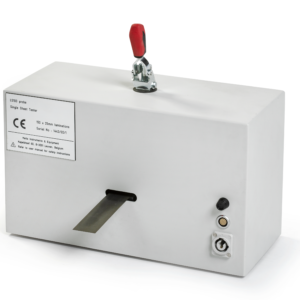

HyMAC soft magnetic materials tester shown in a clean lab setting, featuring a compact instrument with connected fixtures used to measure magnetic properties across a wide frequency range.
Close up of the HyMac testing setup with sample material mounted in a fixture, illustrating how the system evaluates low field magnetic properties of materials like electrical steel, amorphous wires, and nanocrystalline alloys.
HyMac system with multiple interchangeable testing fixtures displayed, highlighting its versatility for full spectrum magnetic material characterization in both research and production environments.
The HyMAC system characterizes the magnetic properties of soft magnetic materials with high repeatability and accuracy.

With HyMAC, engineers and manufacturers can:

  • Measurecore losses, permeability, hysteresis loops, and eddy-current effects under varying frequencies.
  • Test samplesusing strip testers, toroidal field coil testers, and multi-geometry fixtures designed for different material forms.
  • Performincoming inspections, quality control evaluations, and advanced R&D tests for motors, transformers, and e-mobility applications.

Featured Parts & Components (Visual Section)

Breakdown of HyMPulse parts with images and short descriptions (each can be a visual card or clickable tooltip):
Strip Tester
Toroidal Field Coil Tester
HyMAC soft magnetic materials tester shown in a clean lab setting, featuring a compact instrument with connected fixtures used to measure magnetic properties across a wide frequency range.
Grey Testing Fixture
Software & Data Acquisition

Technical Specifications

FERRITE

HPU80

HPU-XL

HPU50

HMP-LITE

Series HMP120 HMP80 HMP65 HMP50 HMP20 HMP15 HMP10 HMP05 HMP03 Unit
Magnet max diagonal 120 80 65 50 20 15 10 5 3 [mm]
Magnet max width 95 63 53 40 12 9 6 3 2 [mm]
Magnet max height 40 38 33 20 10 6 5 5 2 [mm]
Magnet min. volume 3000 1200 900 500 100 40 20 8 1 [mm³]
Maximum temperature 180 180 180 180 180 180 150 100 RT [°C]
Option High Temperature 220 220 220 220 220 220 [°C]

RT: room temperature

Industries

Automotive motors and e-Drive

Transformers and relays

Wind turbine generators

R&D on advanced magnetic materials

Consumer electronics & white goods

Soft magnetic material analysis

Pushing the Limits of Magnetic Engineering

By combining academic rigor, cutting-edge technology, and proven industrial experience, Metis empowers engineers and manufacturers to measure, control, and optimize magnetic performance with confidence.

Questions And Answers

What materials can HyMAC test?
  • HyMAC tests soft magnetic materials, including:
    • Electrical steel sheets (silicon steel)
    • Amorphous ribbons and soft wires
    • Semi-finished components like stators and actuators
  • Strip testersfor standard sheet measurements per IEC 60404-2
  • Toroidal field coilsfor high-accuracy hysteresis and loss analysis of toroids.
  • Performs incoming and outgoing inspectionof materials
  • Quantifies core losses, eddy-current losses, and permeability
  • Ideal for developing high-efficiency motors and transformers
  • Yes, HyMAC supports IEC 60404-compliant testing for electrical steels and related soft materials, ensuring globally accepted quality validation.

Yes, the Metis Results Viewer and customizable reporting tools allow:

  • Immediate visualization of hysteresis loops and loss data
  • Offline sharingwith R&D teams or suppliers
  • Export to Excel or XML filesfor deeper analysis

Downloads

  • Technical Specifications (PDF)
Download
  • Application Note: Permanent Magnet Quality Testing
Download
  • Brochure
Download

Other Products

MSAT instrument interface showing automated data processing used to determine magnetic moment at saturation for metallic components.

MSAT

Fast and precise quantification of retained austenite and magnetic content.

HyMPulse permanent magnet tester displayed in a lab environment, featuring a compact system with integrated magnetizer designed for non destructive testing of materials like NdFeB, SmCo, and ferrite.

HyMPulse

Flagship non-destructive tester for permanent magnets.
